Diaphragm Pressure Gauge

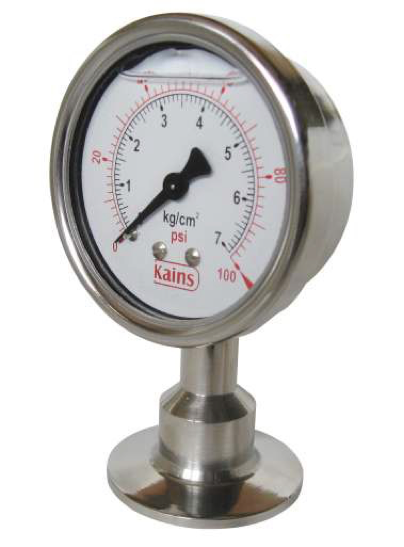

Sanity Diaphragm

Type: Weather proof / Glycerin filled

    Specification

  • Nominal sizes: 2 ½”, 4”, 6”
  • Case and Bezel: 304 S S with screwed bezel
  • Wetted Parts: 316 S S / 316L S S
  • Moment: 304 S S
  • Diaphragm: 316L S S
  • Flange: 316S S / 316LS S
  • Pressure Range: up to 100kg

    Application

  • Filtration, Water Treatment, Pharmaceuticals, Bio tech and Food

    Optional

  • Bottom part & TC clamp
  • Tailor made dial markings

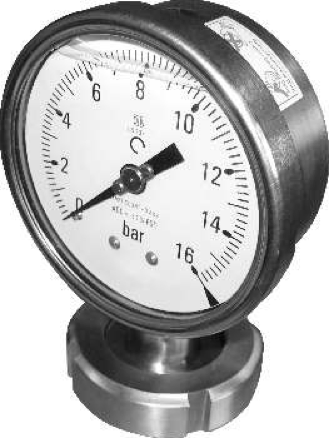

SMS Union Diaphragm Gauge

Type: Weather proof / Glycerin filled

    Specification :

  • Nominal sizes: 2 ½”, 4”, 6”
  • Case and Bezel: 304 S S with screwed bezel
  • Wetted Parts: 316 S S / 316L S S
  • Moment: 304 S S
  • Diaphragm: 316L S S
  • Flange: 316S S / 316LS S
  • Pressure Range: up to 100kg

    Application

  • Filtration, Water Treatment, Pharmaceuticals, Bio tech and Food

    Optional

  • Tailor made dial markings

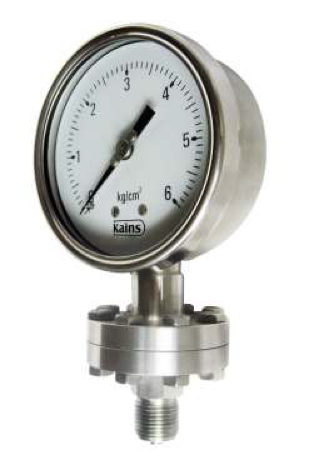

Sealed Diaphragm

Type: Weather proof / Glycerin filled

    Specification :

  • Nominal sizes: 4”, 6”
  • Case and Bezel: 304 S S with screwed bezel
  • Wetted Parts: 316 S S / 316L S S
  • Moment: 304 S S
  • Diaphragm: 316L S S
  • Flange: 316S S / 316LS S
  • Pressure Range: up to 200kg

    Application

  • Chemical, Petrochemical

    Optional

  • PTFE coating, Lining, Protection
  • PTFE diaphragm
  • Other standard threads
  • Tailor made dial markings

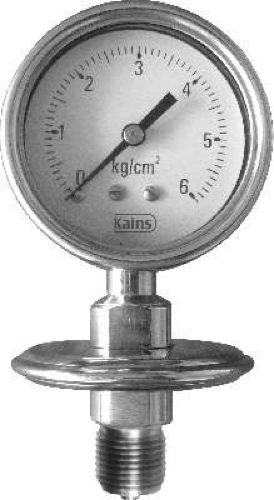

Sealed Diaphragm

Type: Weather proof / Glycerin filled

    Specification :

  • Nominal sizes: 2 ½”, 4”, 6”
  • Case and Bezel: 304 S S with screwed bezel
  • Wetted Parts: 316 S S / 316L S S
  • Moment: 304 S S
  • Diaphragm: 316L S S
  • Flange: 316S S / 316LS S
  • Pressure Range: up to 40kg/cm2

    Application

  • Filtration, Water Treatment, Pharmaceuticals, Bio tech and Food, Chemical, Petrochemical

    Optional

  • Other standard threads
  • Tailor made dial markings

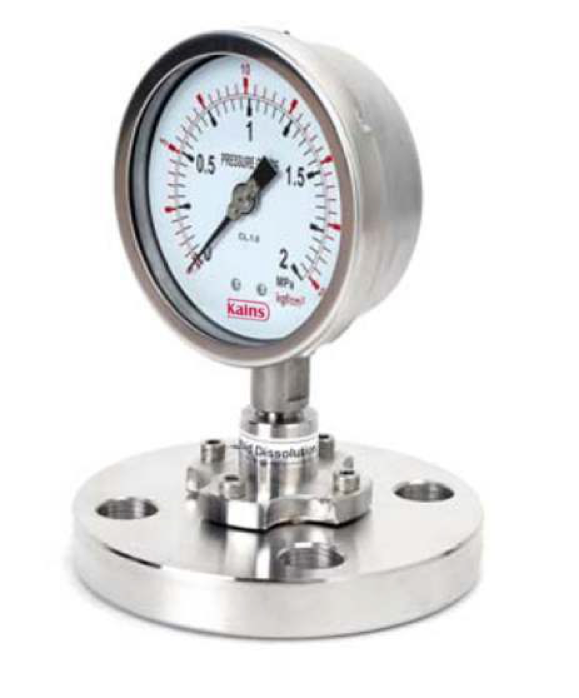

Flanged Diaphragm Pressure Gauge

Type: Weather proof / Glycerin filled

    Specification :

  • Nominal sizes: 4”, 6”
  • Case and Bezel: 304 S S with screwed bezel
  • Wetted Parts: 316 S S / 316L S S
  • Moment: 304 S S
  • Diaphragm: 316L S S
  • Flange: 316S S / 316LS S - ANSI / DIN
  • Pressure Range: up to 40kg/cm2

    Application

  • Chemical, Petrochemical

    Optional

  • PTFE coating, Lining, Protection
  • PTFE diaphragm
  • Other standard Flanges

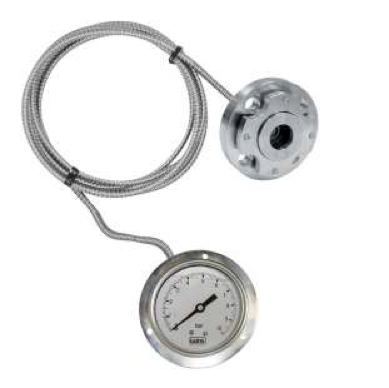

Remote Mounting Pressure Gauge

Type: Weather proof / Glycerin filled

    Specification :

  • Nominal sizes: 4”, 6”
  • Case and Bezel: 304 S S with screwed bezel
  • Wetted Parts: 316 S S / 316L S S
  • Moment: 304 S S
  • Diaphragm: 316L S S
  • Flange: 316S S / 316LS S - ANSI / DIN
  • Pressure Range: up to 40kg/cm2

    Application

  • Chemical, Petrochemical

    Optional

  • PTFE coating, Lining, Protection
  • PTFE diaphragm
  • Other standard Flanges

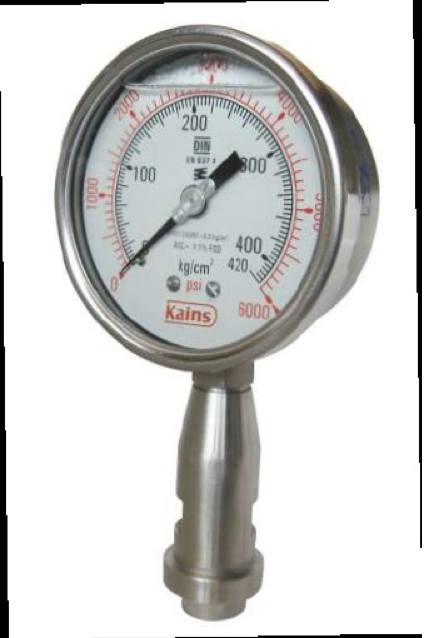

Homogenizer Gauge

Type: Weather proof / Glycerin filled

    Specification :

  • Nominal sizes: 2 ½”, 4”, 6”
  • Case and Bezel: 304 S S with screwed bezel
  • Wetted Parts: 316 S S / 316L S S
  • Moment: 304 S S
  • Diaphragm: 316L S S
  • Flange: 316S S / 316LS S
  • Pressure Range: up to 2000kg

    Application

  • Milk producing plants

    Optional

  • Standard threaded fittings
  • Tailor made dial markings

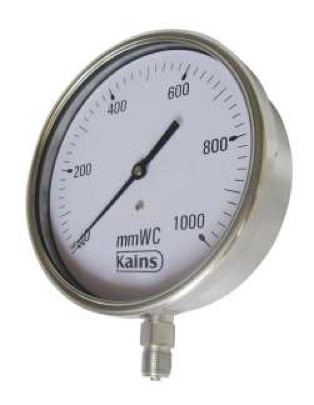

Inbuilt Diaphragm

Type: Weather proof

    Specification :

  • Nominal sizes: 4”, 6”
  • Case and Bezel: 304 S S with screwed bezel
  • Wetted Parts: 316 S S / 316L S S
  • Moment: 304 S S
  • Diaphragm: 316L S S ( built in)
  • Pressure Range: up to 10000mm Wc / 1000 m bar

    Application

  • Low Pressure measurement

    Optional

  • Other standard threads
  • Tailor made dial markings
  • Higher ranges

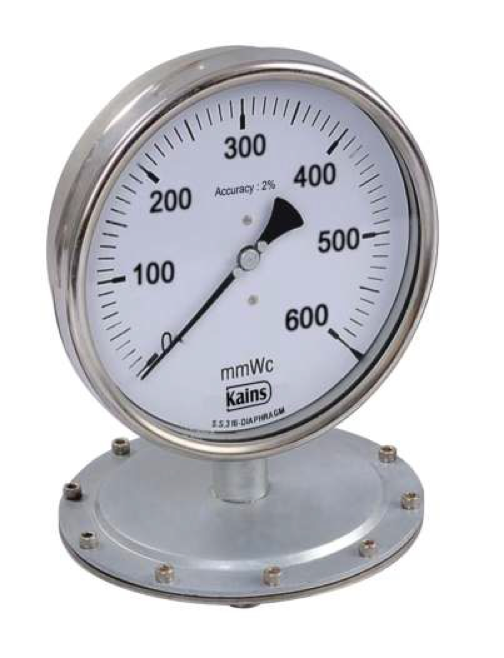

Schaffer’s Diaphragm

Type: Weather proof

    Specification :

  • Nominal sizes: 4”, 6”
  • Case and Bezel: 304 S S / M S rust protected with screwed bezel
  • Wetted Parts: 316 S S / 316L S S
  • Moment: 304 S S
  • Diaphragm: 316L S S / 361 S S
  • Flange: 316LS S / 316S S / MS rust protected
  • Pressure Range: up to 25kg

    Application

  • Low Pressure measurement

    Optional

  • PTFE coating, Lining, Protection Other standard threads
